液压传动、摆式刀架。机架整体焊接坚固耐用，使用氮气回程，平稳迅速。
具有无级调节行程的功能，上下刀片刃口间隙量用手柄调节，刀片间隙均匀度容易调整。

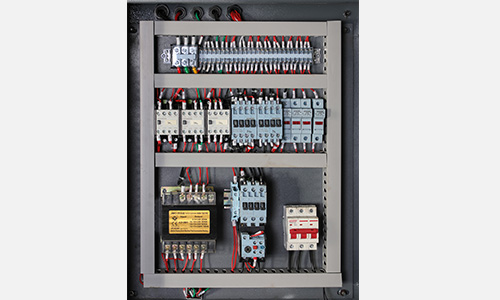

防护栅与电气联锁确保操作安全。
NC数控系统与位置编码器组成闭环控制系统，速度，陕、精度高、稳定性好，能精确地保证后挡料位移尺寸的精度，同时数控系统具有丰㈠尝功能及自动检测等多种附加功能。
|
规格型号 |
可剪板厚mm |
可剪板宽mm |
剪切角 |
行程次数 |
后挡料范围mm |
主电机功率KW |
|
QC12K-4×2500 |
4 |
2500 |
1°30' |
18 |
20-600 |
4 |
|
QC12K-4×3200 |
4 |
3200 |
1°30' |
18 |
20-600 |
7.5 |
|
QC12K-4×4000 |
4 |
4000 |
1°30' |
12 |
20-600 |
7.5 |
|
QC12K-4×6000 |
4 |
6000 |
1°30' |
7 |
20-800 |
11 |
|
QC12K-6×2500 |
6 |
2500 |
1°30' |
18 |
20-600 |
7.5 |
|
QC12K-6×3200 |
6 |
3200 |
1°30' |
14 |
20-600 |
7.5 |
|
QC12K-6×4000 |
6 |
4000 |
1°30' |
12 |
20-600 |
7.5 |
|
QC12K-6×6000 |
6 |
6000 |
1°30' |
7 |
20-800 |
11 |
|
QC12K-8×2500 |
8 |
2500 |
1°30' |
14 |
20-600 |
11 |
|
QC12K-8×3200 |
8 |
3200 |
1°30' |
10 |
20-600 |
11 |
|
QC12K-8×4000 |
8 |
4000 |
1°30' |
8 |
20-600 |
11 |
|
QC12K-10×2500 |
10 |
2500 |
1°30' |
10 |
20-600 |
11 |
|
QC12K10×3200 |
10 |
3200 |
1°30' |
10 |
20-600 |
11 |
|
QC12K-10×4000 |
10 |
4000 |
1°30' |
8 |
20-600 |
11 |
|
QC12K-12×2500 |
12 |
2500 |
2° |
10 |
20-600 |
15 |
|
QC12K-12×3200 |
12 |
3200 |
2° |
9 |
20-600 |
15 |
|
QC12K-12×4000 |
12 |
4000 |
2° |
8 |
20-600 |
18.5 |
|
QC12K-12×6000 |
12 |
6000 |
2° |
6 |
20-600 |
18.5 |
|
QC12K-16×2500 |
16 |
2500 |
2° |
8 |
20-800 |
18.5 |
|
QC12K-16×3200 |
16 |
3200 |
2° |
7 |
20-600 |
18.5 |
|
QC12K-16×4000 |
16 |
4000 |
2° |
5 |
20-600 |
18.5 |
|
QC12K-20×2500 |
20 |
2500 |
2°30' |
7 |
20-800 |
22 |
|
QC12K-20×3200 |
20 |
3200 |
2°30' |
6 |
20-800 |
22 |
|
QC12K-20×4000 |
20 |
4000 |
2°30' |
5 |
20-800 |
22 |
|
QC12K-25×2000 |
25 |
2000 |
3° |
8 |
20-800 |
37 |
|
QC12K-25×2500 |
25 |
2500 |
3° |
6 |
20-800 |
37 |
|
QC12K-25×3200 |
25 |
2500 |
3° |
5 |
20-800 |
37 |
|
QC12K-25×4000 |
25 |
4000 |
3° |
4 |
20-800 |
37 |
|
QC12K-32×2500 |
32 |
2500 |
3° |
|
20-1000 |
45 |
|
QC12K-32×3200 |
30 |
3200 |
3° |
4 |
20-1000 |
45 |
|
QC12K-40×2500 |
40 |
2500 |
3° |
4 |
20-1000 |
55 |
